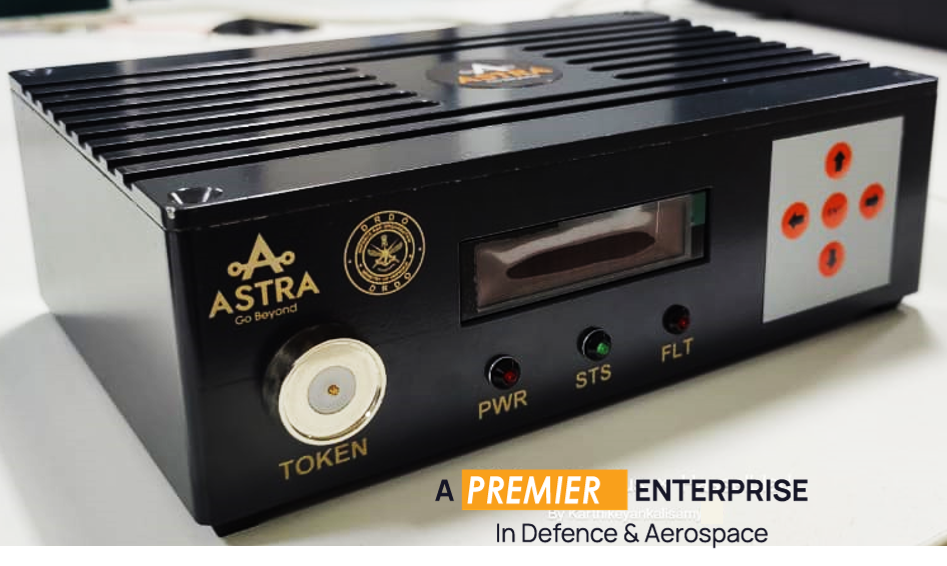

SOC BASED CONTROLLER HARDWARE PLATFORM
The SoC based Controller Hardware Platform is built on Intel’s Cyclone V SoC hardware with associated peripherals. The CHP firmware developed in bare metal coding without any OS support to enable high security. The CHP has USB2.0, Ethernet and RS232 Interfaces to communicate with the PC. The CHP has tamper detection feature to enhance the security and one wire iButton interface for prevent the unit from unauthorized access.
The Controller Hardware Platform (CHP) has 5 keys keypad and 2x20 OLED display for seamless operation. A dedicated GUI is used for remote operation of the CHP.
SPECIFICATIONS:
| Intel’s Cyclone V SoC with ARM Cortex A9 Dual core |
| 512MB DDR3L SDRAM |
| 256MB CMOS flash for external storage |
| Bare metal coding( Without OS Support) |
| Linux based GUI on Qt Creator |
| 12V DC power supply |
