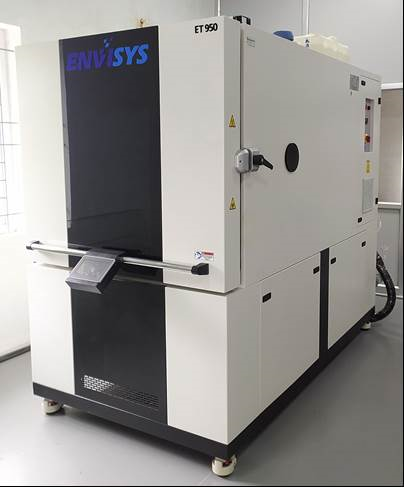

ENVIRONMENTAL CHAMBER

  • Make
ENVISYS – Bangalore
  • Operating Temperature
-70°C to +180°C
  • Gradient Fluctuation
± 2.0°C
  • Relative Humidity
10 to 98% (10°C to 85°C)
  • Gradient Fluctuation RH
± 3%
  • Ramp Time
10°C/Minute (Max)
  • Internal dimension
1000 x 980 x 940 mm (LxWxH)
  • Test

High Temperature Test,

Low Temperature Test,

Temperature cycle Test,

Damp Heat Test,

Dry Heat Test,

Cold Test.

  • Purpose
To validate the life cycle of product / Module Simulation tests which are identical to real Condition To ensure rigid design
